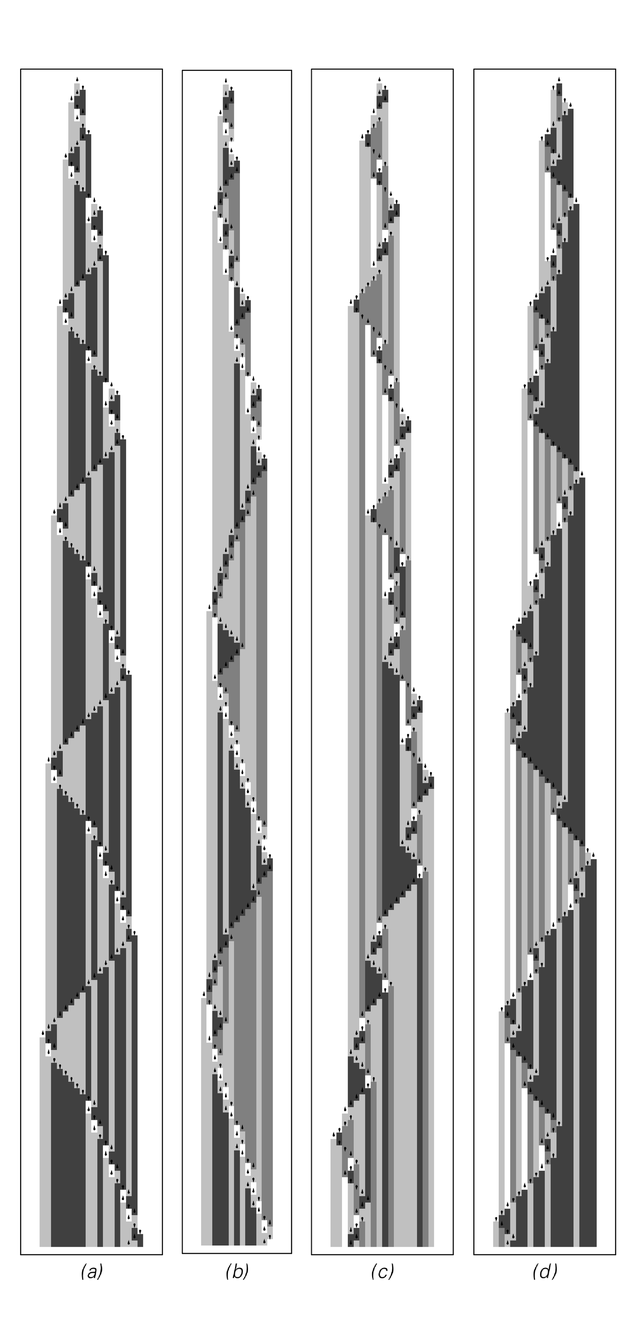

As the picture at the bottom of the previous page illustrates, this Turing machine emulates rule 110 in a quite straightforward way: its head moves systematically backwards and forwards, at each complete sweep updating all cells according to a single step of rule 110 evolution. And knowing from earlier in this chapter that rule 110 is universal, it then follows that the 2-state 5-color Turing machine must also be universal.

So is this then the simplest possible universal Turing machine?

I am quite certain that it is not. And in fact I expect that there are some significantly simpler ones. But just how simple can they actually be?

If one looks at the 4096 Turing machines with 2 states and 2 colors it is fairly easy to see that their behavior is in all cases too simple to support universality. So between 2 states and 2 colors and 2 states and 5 colors, where does the threshold for universality in Turing machines lie?

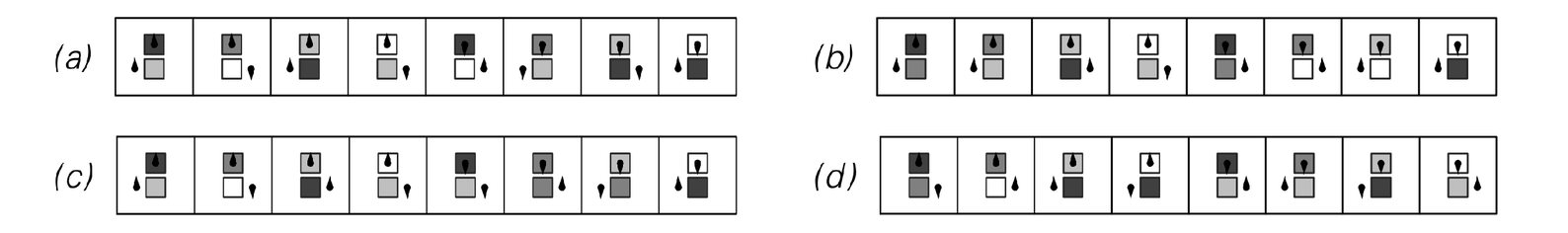

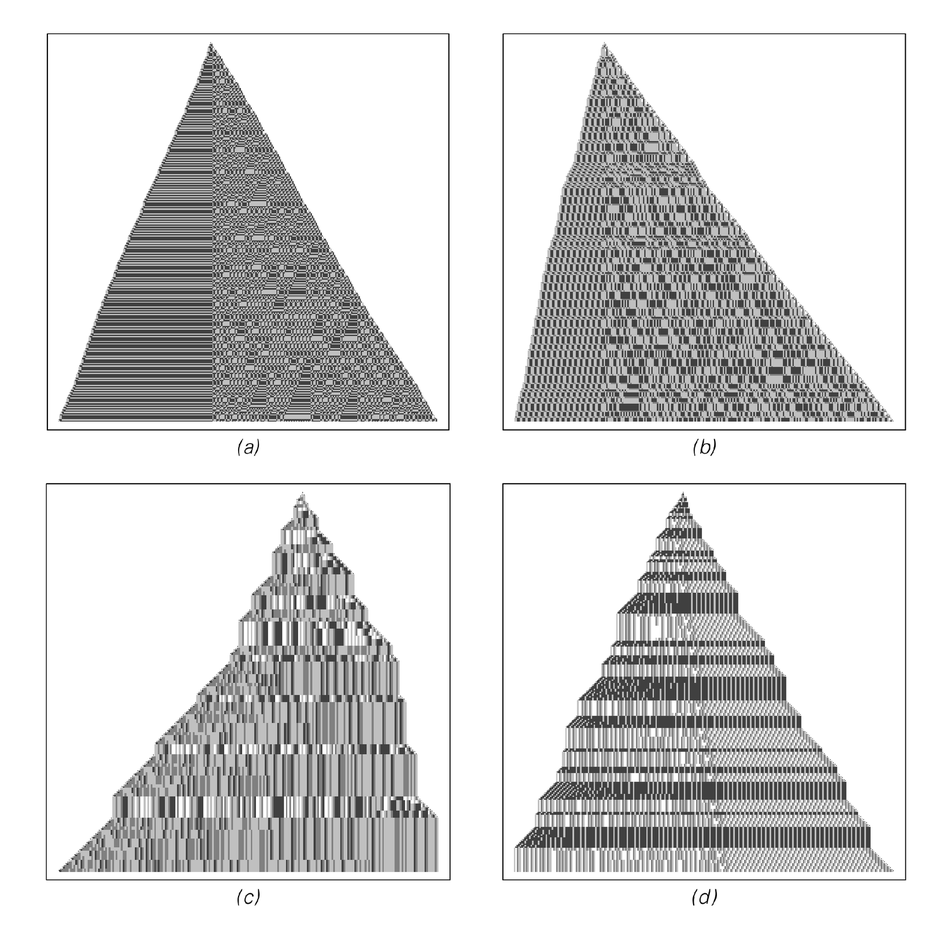

Examples of Turing machines with 2 states and 4 colors that show complex behavior. The compressed pictures above are based on 50,000 steps of evolution. In all cases, all cells are initially white.

As the picture at the bottom of the previous page illustrates, this Turing machine emulates rule 110 in a quite straightforward way: its head moves systematically backwards and forwards, at each complete sweep updating all cells according to a single step of rule 110 evolution. And knowing from earlier in this chapter that rule 110 is universal, it then follows that the 2-state 5-color Turing machine must also be universal.

So is this then the simplest possible universal Turing machine?

I am quite certain that it is not. And in fact I expect that there are some significantly simpler ones. But just how simple can they actually be?

If one looks at the 4096 Turing machines with 2 states and 2 colors it is fairly easy to see that their behavior is in all cases too simple to support universality. So between 2 states and 2 colors and 2 states and 5 colors, where does the threshold for universality in Turing machines lie?


Examples of Turing machines with 2 states and 4 colors that show complex behavior. The compressed pictures above are based on 50,000 steps of evolution. In all cases, all cells are initially white.

From Stephen Wolfram: A New Kind of Science [citation]
