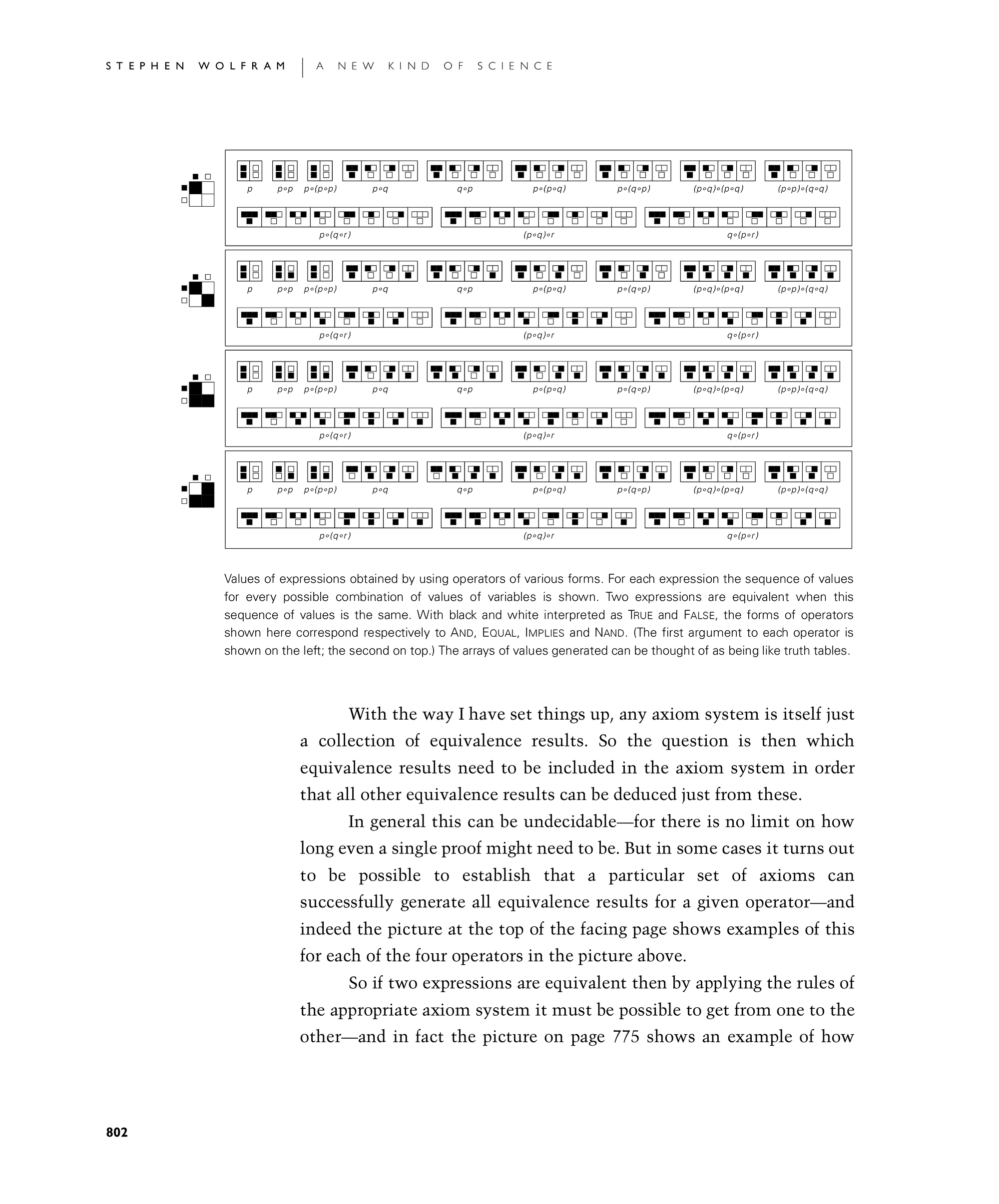

Page 802: Implications for Mathematics and Its Foundations

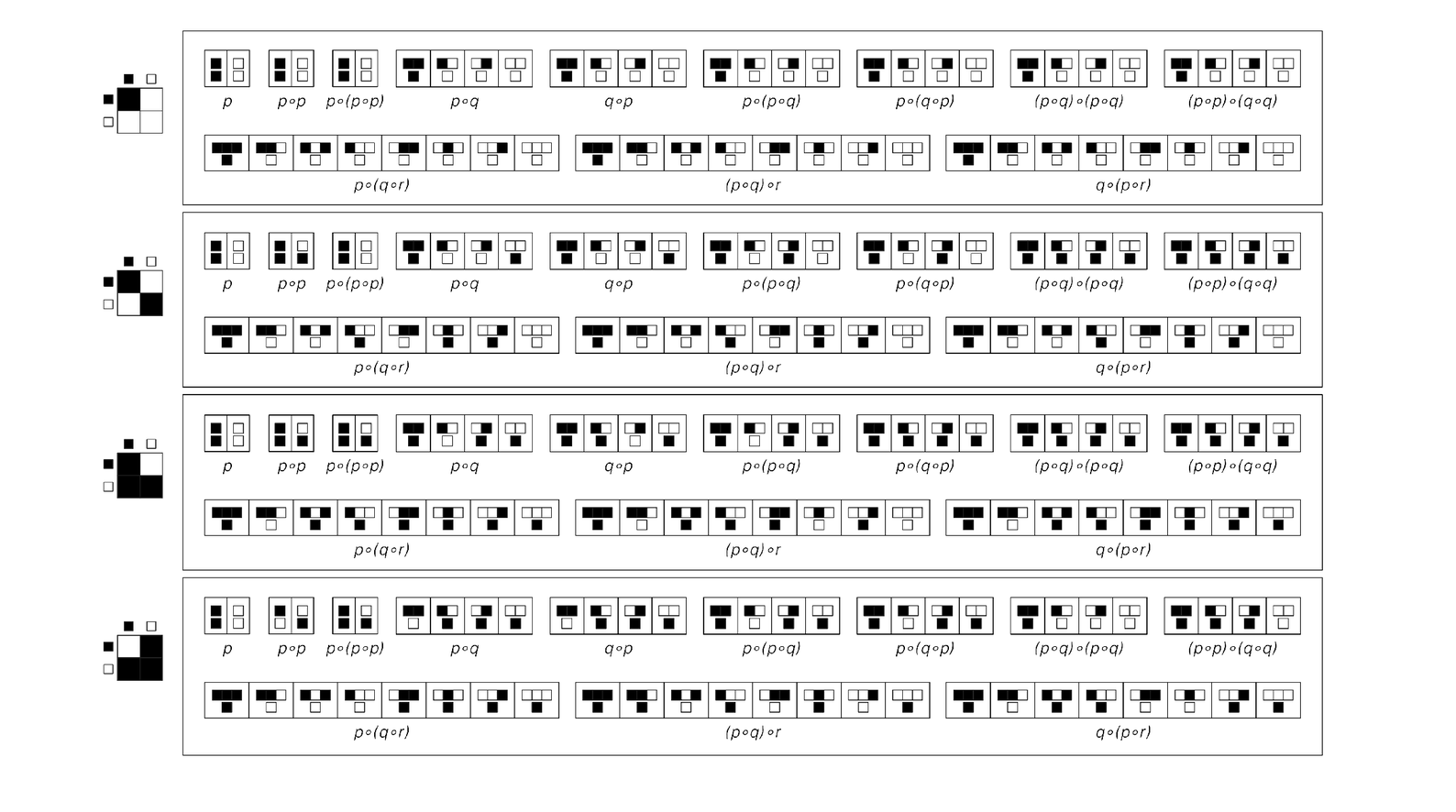

Values of expressions obtained by using operators of various forms. For each expression the sequence of values for every possible combination of values of variables is shown. Two expressions are equivalent when this sequence of values is the same. With black and white interpreted as True and False, the forms of operators shown here correspond respectively to And, Equal, Implies and Nand. (The first argument to each operator is shown on the left; the second on top.) The arrays of values generated can be thought of as being like truth tables.

With the way I have set things up, any axiom system is itself just a collection of equivalence results. So the question is then which equivalence results need to be included in the axiom system in order that all other equivalence results can be deduced just from these.

In general this can be undecidable—for there is no limit on how long even a single proof might need to be. But in some cases it turns out to be possible to establish that a particular set of axioms can successfully generate all equivalence results for a given operator—and indeed the picture at the top of the facing page shows examples of this for each of the four operators in the picture below.

So if two expressions are equivalent then by applying the rules of the appropriate axiom system it must be possible to get from one to the other—and in fact the picture on page 775 shows an example of how
